• Standard length: 7,400 mm
• Standard width: 2,540 mm
• Uniformly distributed permissible load: 20t / 14t / 10t
• PTAC: 70,500 lbs / 57,300 lbs / 41,900 lbs
• In accordance with traffic laws
• CE Conformity with the User Manual

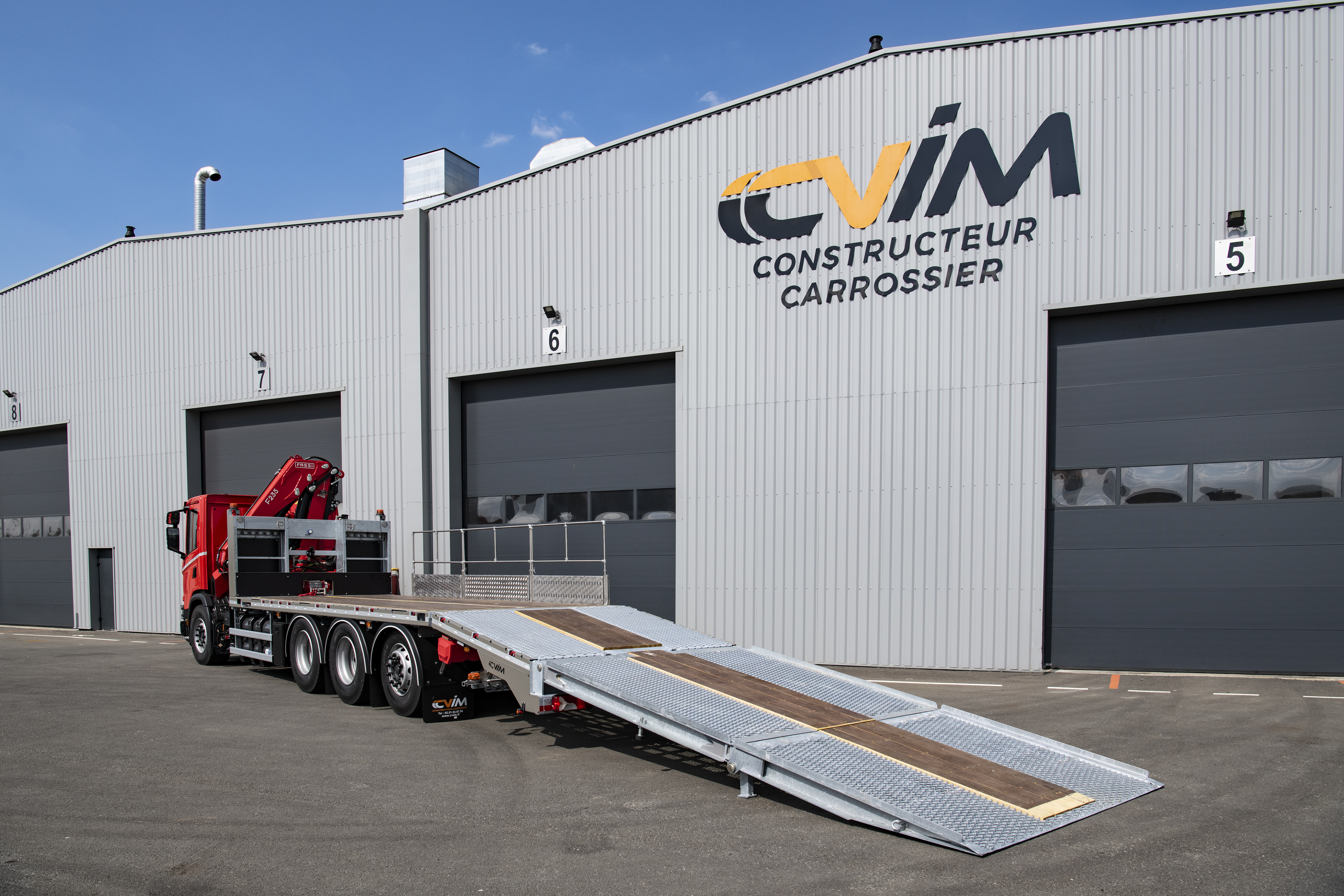

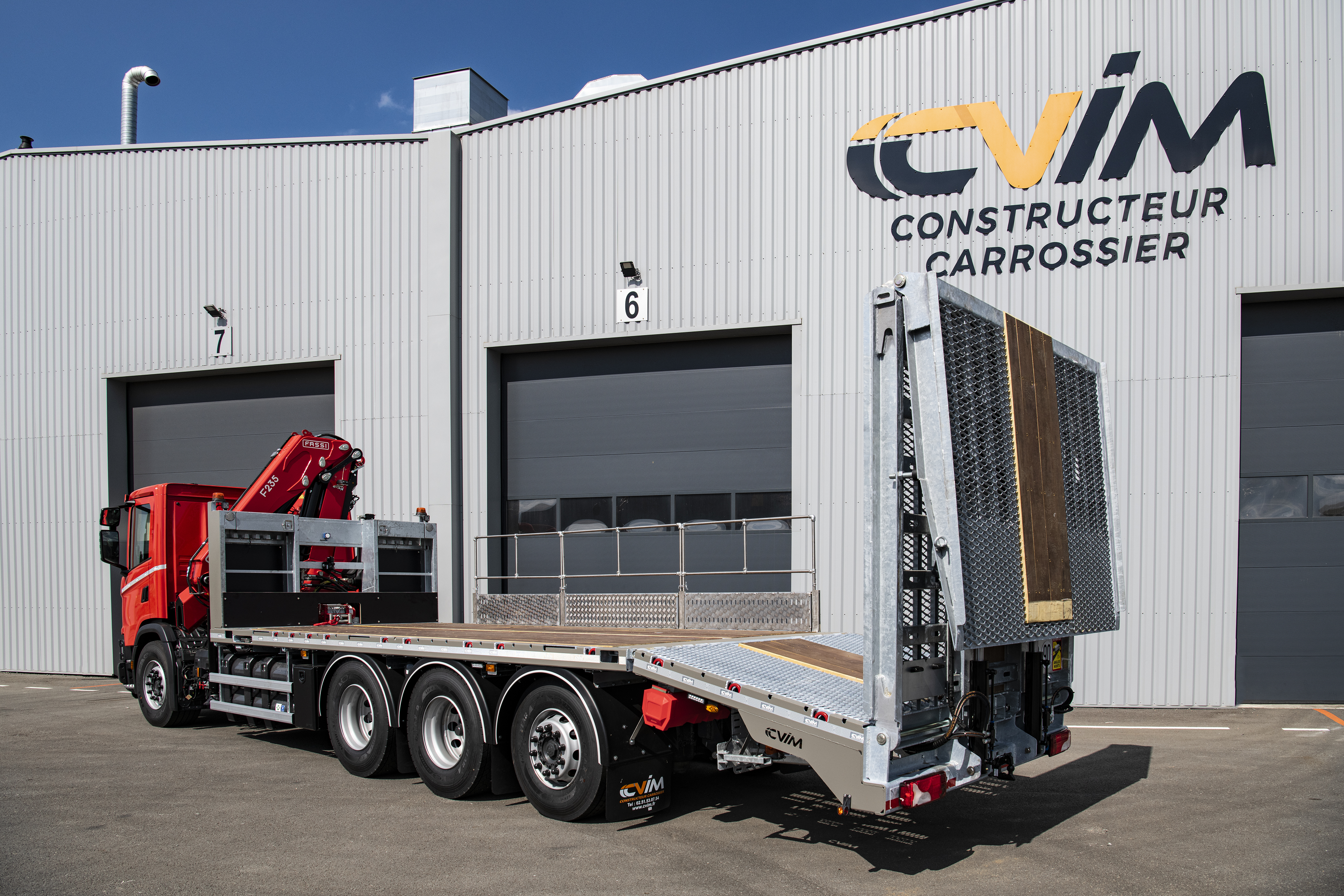

• Fixed platform and hydraulic rear ramp with full galvanization
• Base structure with 150 mm high coaming and 400 mm pitch crossbeam
• Rear cutout with a usable length of 2,000 mm and an angle of 10%

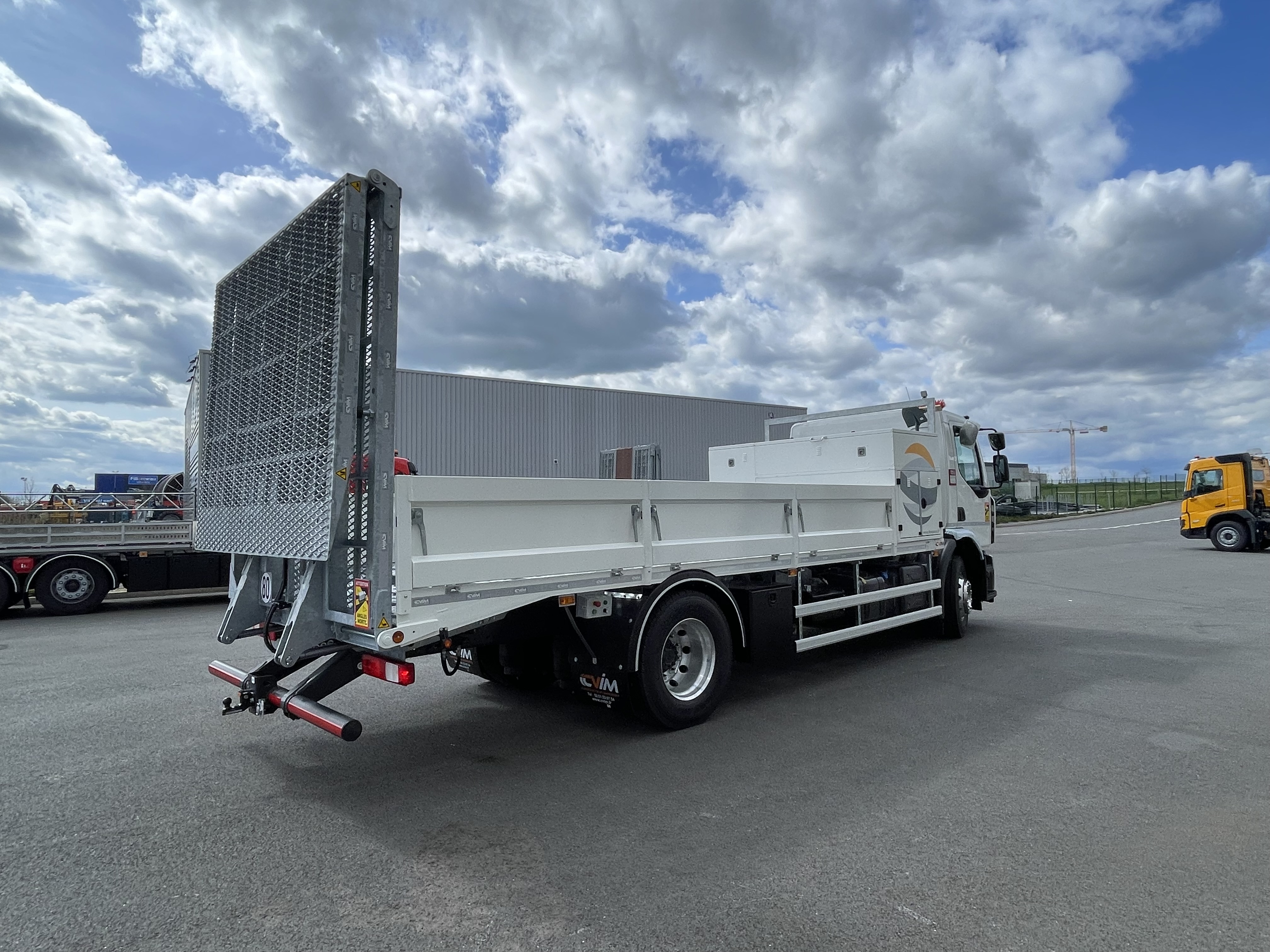

• Large ramp, 2,200 mm length, made of fully galvanized expanded metal
• Small ramp, 1,300 mm long, made of fully galvanized expanded metal
• Front roll bar
• 3.5-ton mixed hooks on the rear of the axle
• Kinematics of deployment / retraction ensured by 4 double-acting hydraulic cylinders with electrically piloted check valves
• Hydraulic circuit with high-pressure pump, tank with filter, and hydraulic distributor
• Right-hand control box (PAX) with automatic lighting and dead man's switch

• Mixed metal and hardwood plate, Lohr type, 4 mm
• 8t and 12t recessed lashing ring
• Standard painted steel tool chest
• Front riser
• Automated centralized greasing on articulated joints
• LED work light on the front panel
• LED perimeter lighting
• Pneumatic articulated beacon

+ numerous options in the catalog and upon request
